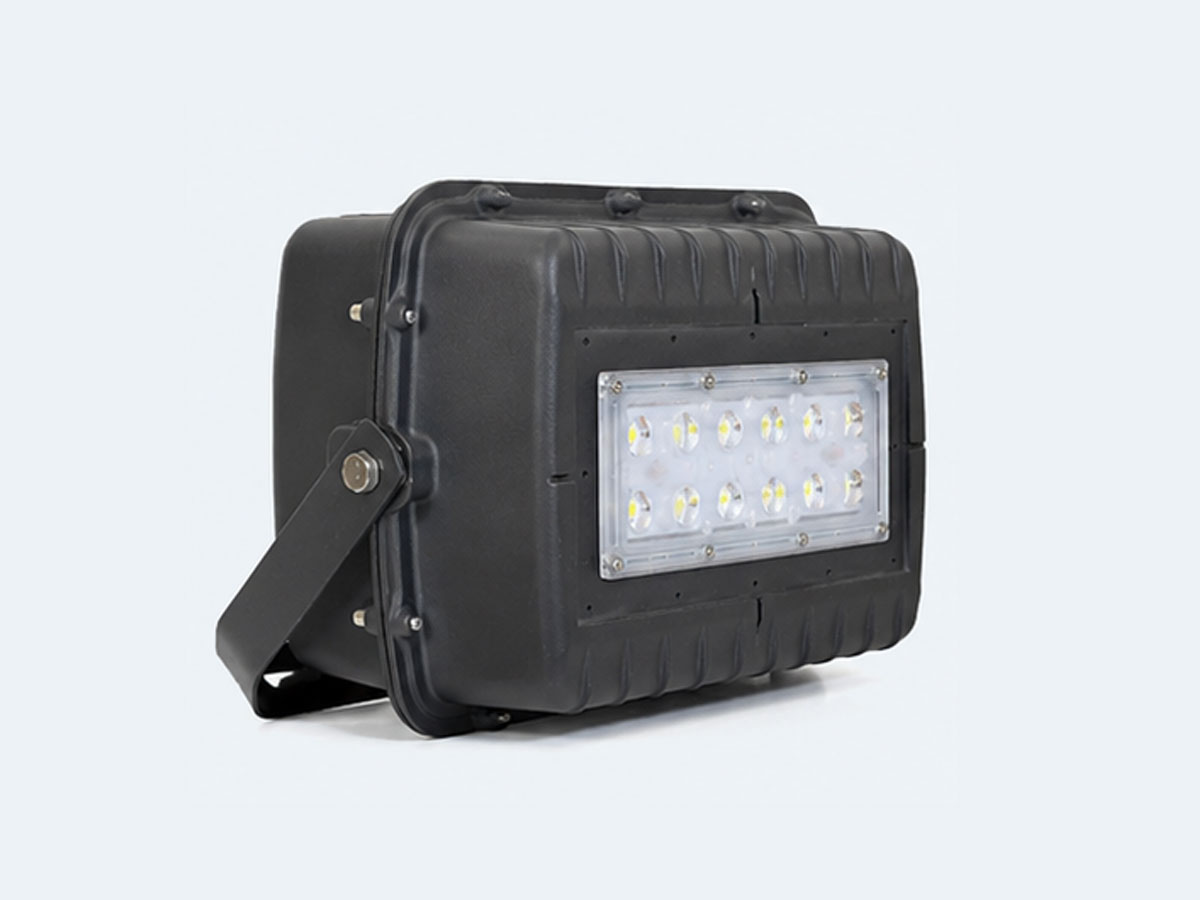

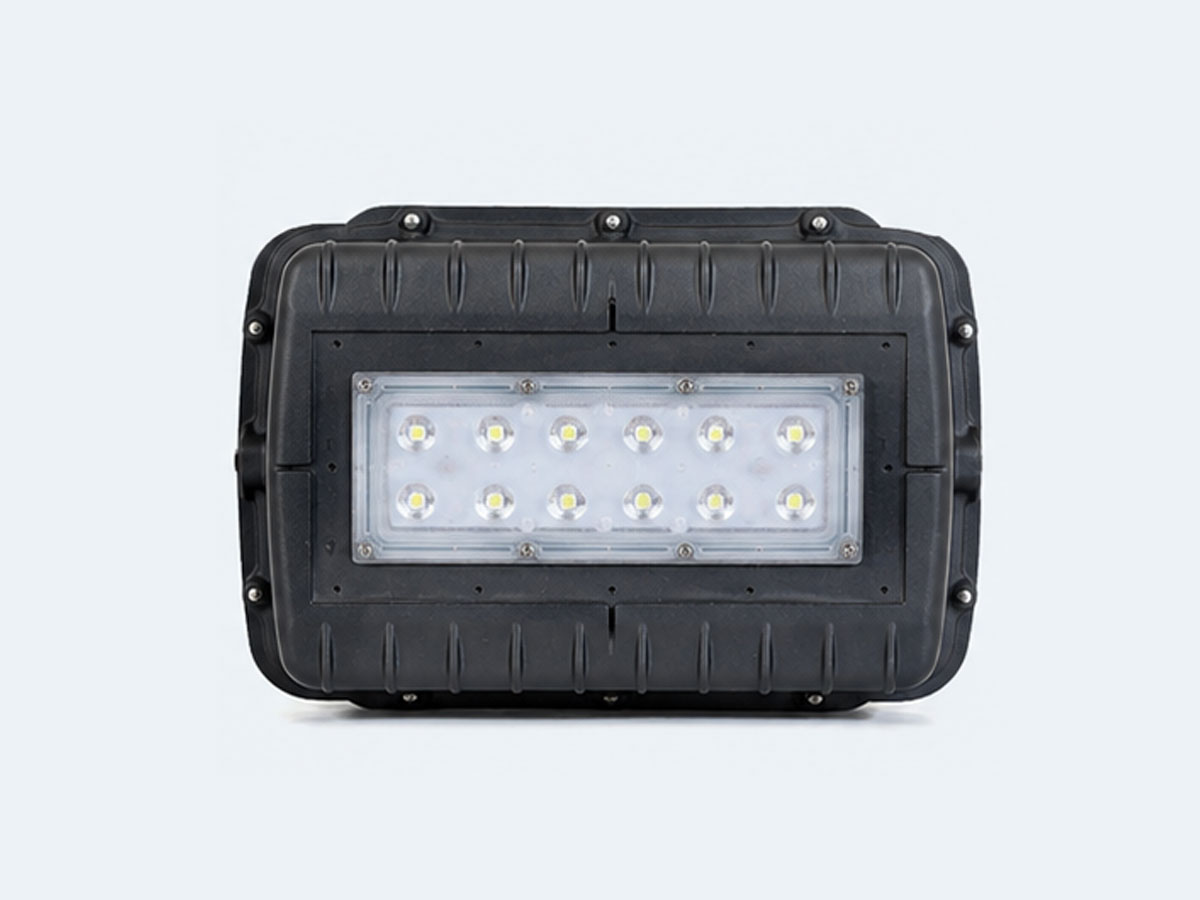

Name: Solar Integrated High Mast Light
Brand: Aarnova Solar
SKU: ASL-HML

Wide-area solar illumination at height — highways, stadiums, and beyond.

The Aarnova Solar Integrated High Mast Light is purpose-built for large-area illumination from poles of 9 m to 20 m height. Each luminaire head integrates the LED module and LiFePO4 battery, while the solar panel is separately positioned at the optimal tilt and azimuth — ensuring maximum energy harvest regardless of the mast’s orientation.

Available in single-head and multi-head configurations (25W to 120W per head), the system covers highways, toll plazas, stadiums, logistics yards, and any large open space that demands powerful, reliable night-time illumination without grid dependency.

IP65-rated, Made in India, and CE-certified — engineered for the demands of Indian infrastructure projects.

Get a Quote

Key Features

Everything you need for reliable solar illumination.

High Mast Ready

Compatible with 9 m to 20 m poles. Multi-head ring mount for 360° coverage.

Optimal Panel Placement

Solar PV module mounted separately with adjustable tilt — independent of luminaire direction.

In-Fixture Battery

LiFePO4 battery sealed inside each luminaire head. Eliminates external battery box and theft risk.

25W – 120W per Head

Single or multi-head configurations — scale total output from 25W to 480W per mast.

IP65 Protection

Sealed against dust ingress and water jets. Rated for 15+ years outdoor service life.

8–14 Hr Runtime

Smart charge controller with auto-dimming extends runtime through consecutive cloudy days.

Compact Design

No bulky external battery box. Slim luminaire profile reduces wind load on tall masts.

Made in India

Manufactured at our Gujarat facility. CE, RoHS, and BIS certified for domestic and export use.

Technical Specifications

Full performance and compliance data for your evaluation.

Parameter	Specification
Power per Head	25W / 36W / 50W / 75W / 100W / 120W
Configuration	1, 2, 3, or 4 heads per mast
Solar Panel	Monocrystalline, separately adjustable tilt mount
Battery Type	LiFePO4, integrated in luminaire head
LED Luminous Flux	3,000 – 15,000 lm per head
Colour Temperature	6,000K Cool White
Beam Angle	Type II / Type III / Type V road optics
Charging Time	5–8 hours (full sun)
Working Time	8–14 hours (auto-dimming smart mode)
IP Rating	IP65
Pole Height	9 m – 20 m
Operating Temperature	−20°C to +55°C
Housing Material	Die-cast aluminium, powder coated
Weight per Head	4.5 kg approx.
Certification	CE, RoHS, BIS, Made in India
Warranty	3 years (battery), 5 years (light source)

Why Choose This Product

Built to perform where it matters most.

Panel oriented independently for maximum daily energy yield

No external battery box — eliminates tampering, theft, and extra maintenance points

Multi-head ring mount covers wide areas with uniform illumination

LiFePO4 battery provides 2,000+ safe charge cycles

IP65 sealed against construction dust, rain, and coastal salt spray

Auto-dimming smart controller stretches runtime on low-sun days

Modular heads allow capacity to be increased without replacing the mast

Slim profile reduces structural wind load at height

Made in India — shorter lead times and local support

CE & BIS certified — compliant with government and infrastructure tenders

Zero electricity tariff — no recurring operational costs

Scalable from 25W single-head to 480W quad-head per mast

Ideal Applications

Proven performance across diverse real-world environments.

Highways & Expressways

Stadiums & Arenas

Toll Plazas

Logistics Parks

Airport Perimeters

Industrial Yards

Large Parking Areas

Construction Sites
